| High-capacity spray agent tanks | The UF 02 mounted sprayer is available in tank capacities of 1,000 l, 1,300 l, 1,600 l and 2000 l. The specially shaped, polyethylene tank is integrated into the main frame to give a favourable centre of gravity. The advantages of this tank design are the absolutely smooth inner and outer walls of the tank, the rounded internal design and the low positioned sump on the tank bottom. This allows for quick, effective tank cleaning as well as minimal residual volumes. |
|
| The filling of the tank is carried out, both on the suction side and also when pressure filling from a water source, near to the tank bottom. This reliably eliminates any tendency for foaming during the filling procedure. For an intensive agitation capacity and to prevent any deposits settling in the tank, the agitator is positioned down on the tank bottom. The internal cleaning nozzle, the tank breather and the easily opened, domed lid are positioned right up in the tank. |
|
| Favourable centre of gravity – perfect frame design | Due to the large tank volumes of the UF 02, it is of importance to link the machine to the tractor with as favourable a centre of gravity as possible. To ensure this, the UF 02 is equipped with two different link arm positions for different tractors. Guide plates in front of the frame help to link the lower link arms to the torsion-safe, lower link pins which are ready fitted with Cat. 3 balls. The coupling geometry is designed for both Cat. 2 and Cat. 3 link arms. The pin size for the top link is also Cat. 3. |
|
| Comfortable hitching up – the quick coupling system | To simplify the mounting of the UF 02 to the tractor, the front side of the tank is completely free from hoses and holders. For an even more relaxed coupling and uncoupling of the UF 02 from the tractor, it can be equipped with the optional quick coupling system. In conjunction with the TeleSpace PTO shaft, the machine can be hitched on and off with greater comfort. |
|

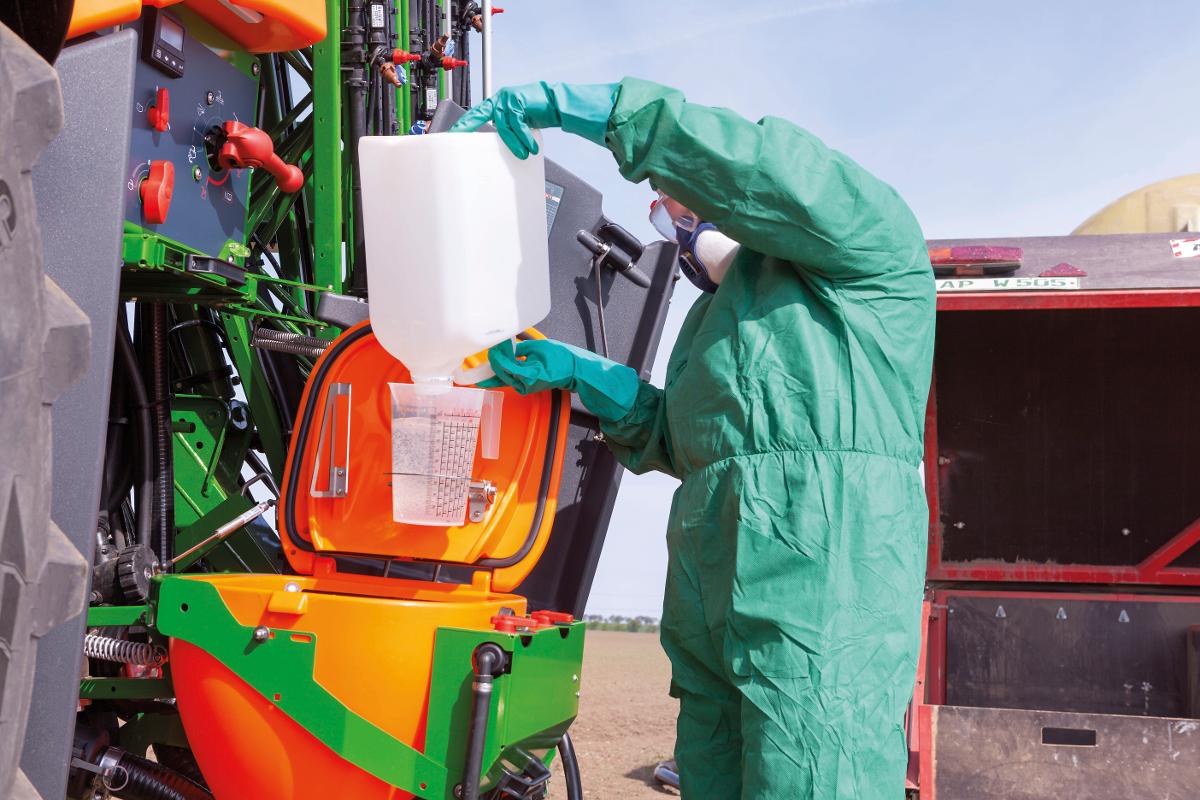

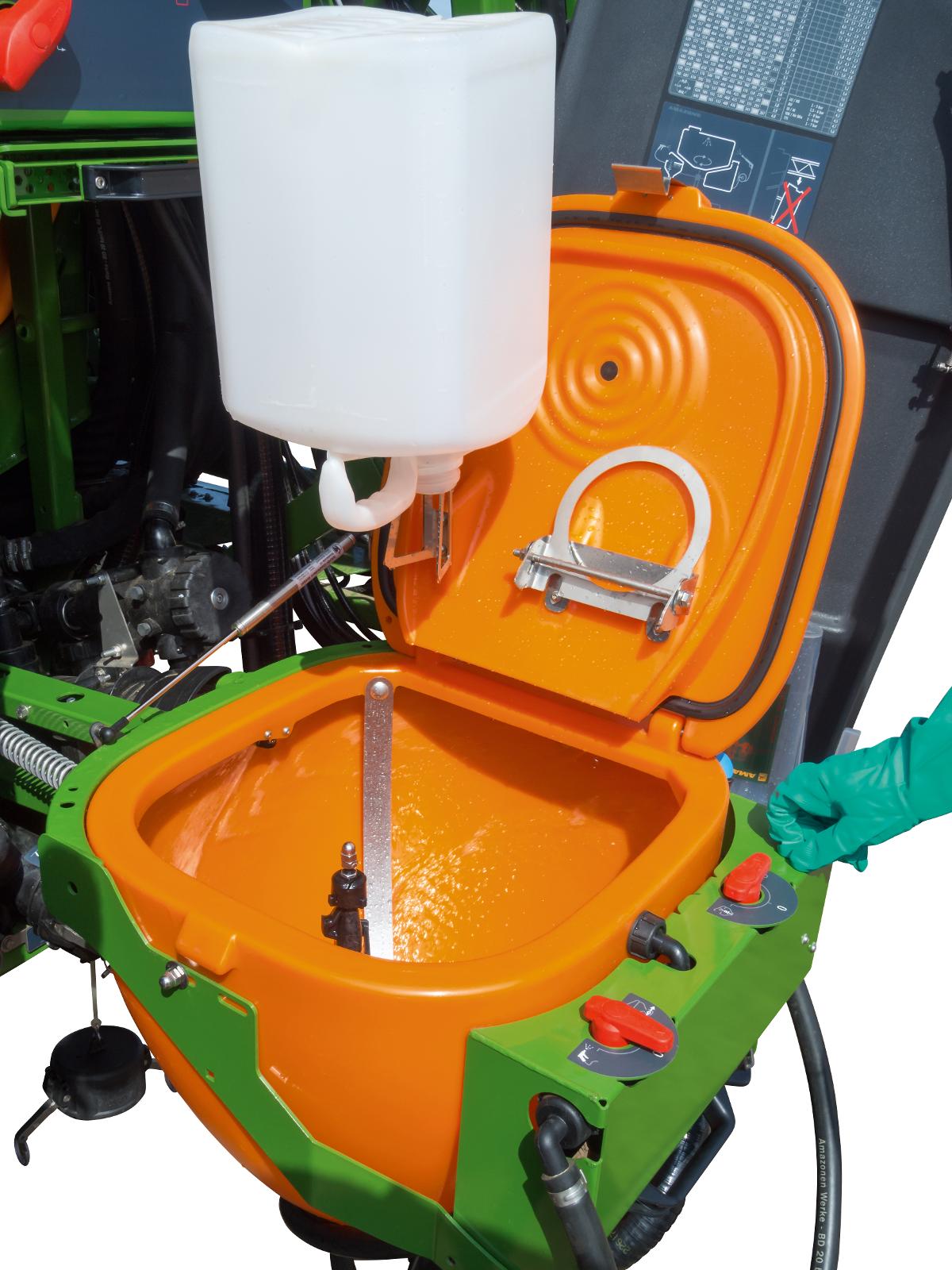

| High-performance and reliable pump technology | The UF 02 can be equipped, from choice, with a single pump system that has a capacity of 150 l/min, 250 l/min or 300 l/min. During the filling procedure at a nominal pump speed, the full pump capacity is available for filling the spray agent tank. At the same time, either the contents of the induction bowl can be drawn out via the venturi or the total fill capacity can be increased up to 450 l/min. |
|
| Everything thought of! Fill level and cleaning | The fill level can be read off both via a clearly visible scale or the operator terminal. High-performance, rotating nozzles clean the spray agent tank internally. Short pipe runs and hose cross-sectional areas as small as possible make for low residual volumes. Continuous internal cleaning is available as an option (not with Flow Control+). |
|

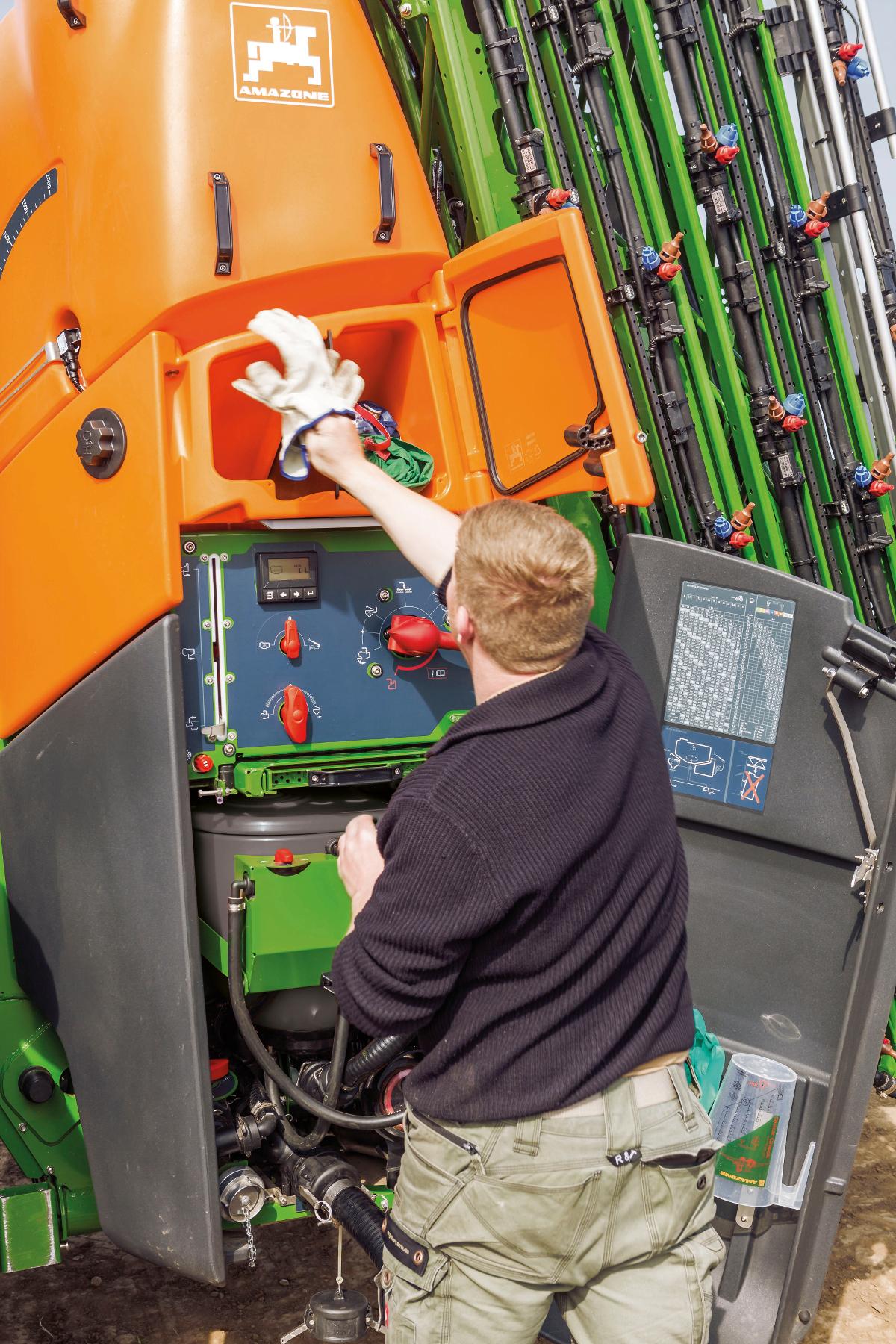

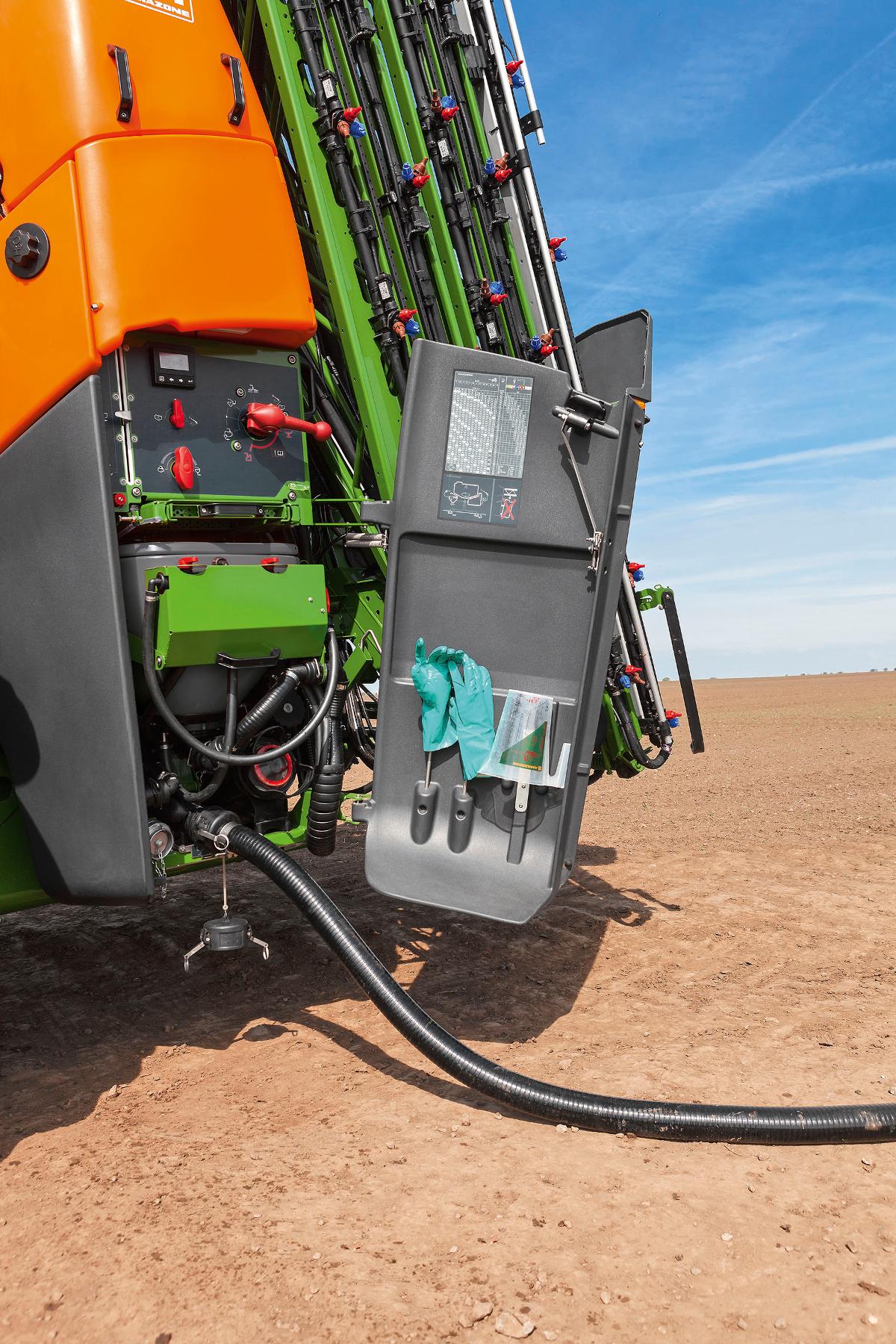

| SmartCenter with Standard-Pack – simple and intuitive operation | Essentially, Standard-Pack means that the UF 02 is operated mainly via the manual suction and the pressure taps. The suction tap determines from where the pump is going to draw the liquid from, whereas, correspondingly, the pressure tap determines where the pump will send the spray liquid to. In addition, the in-house developed 7-way pressure tap from AMAZONE simplifies control of the pressure side. |
|

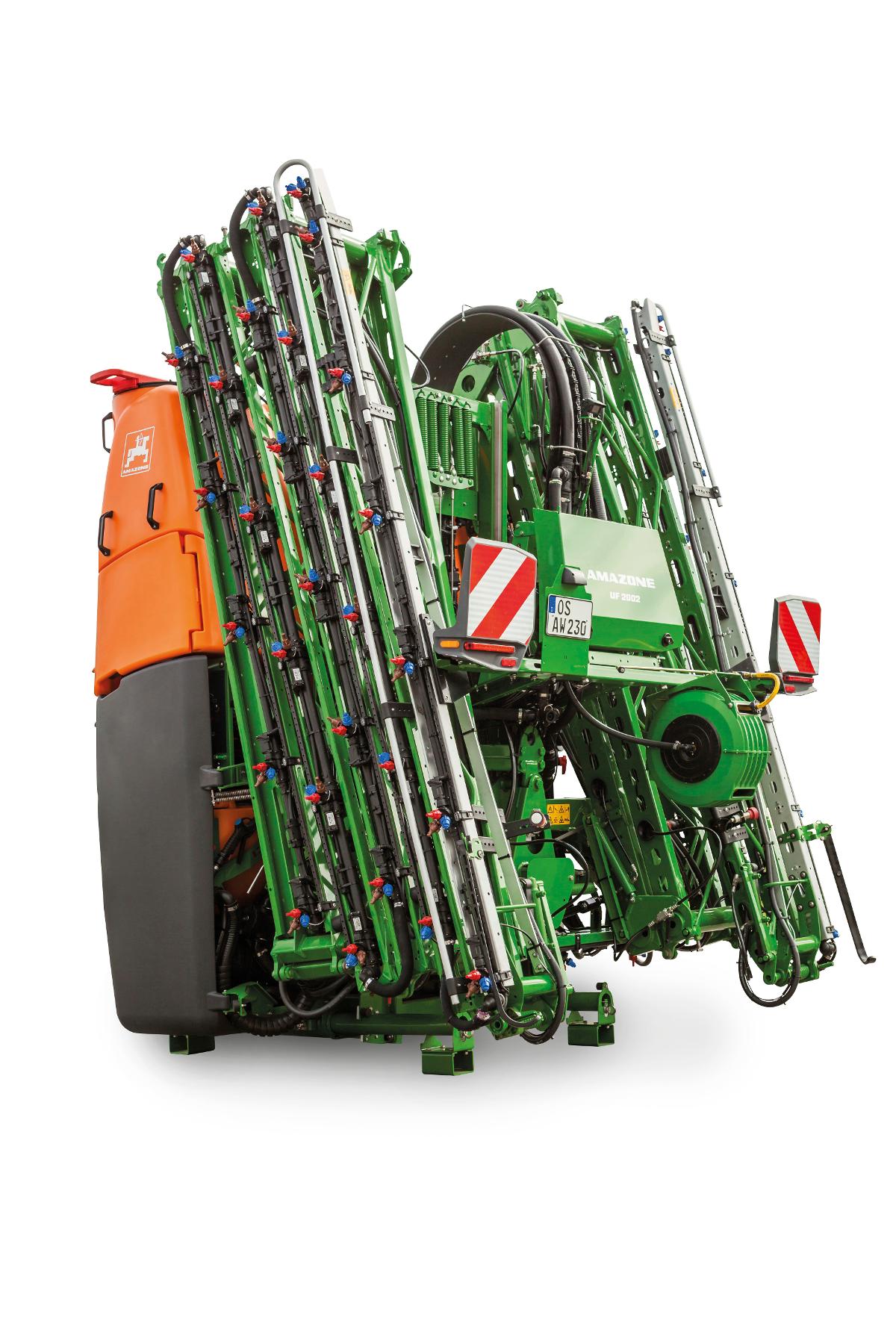

| AMAZONE aircraft-style boom design | Thanks to their special profile design, AMAZONE booms are extremely rigid and yet extremely light. The nozzle bodies with integrated diaphragm non-return anti-drip valves fit up into the boom profiles reliably preventing any dripping at the nozzle. Self-adjusting bayonet fixings ensure a tool-less quick nozzle change. For any operational use and any application rate, the right nozzles are available, for example, for optimum wetting, anti-drift or for liquid fertiliser use. |
|

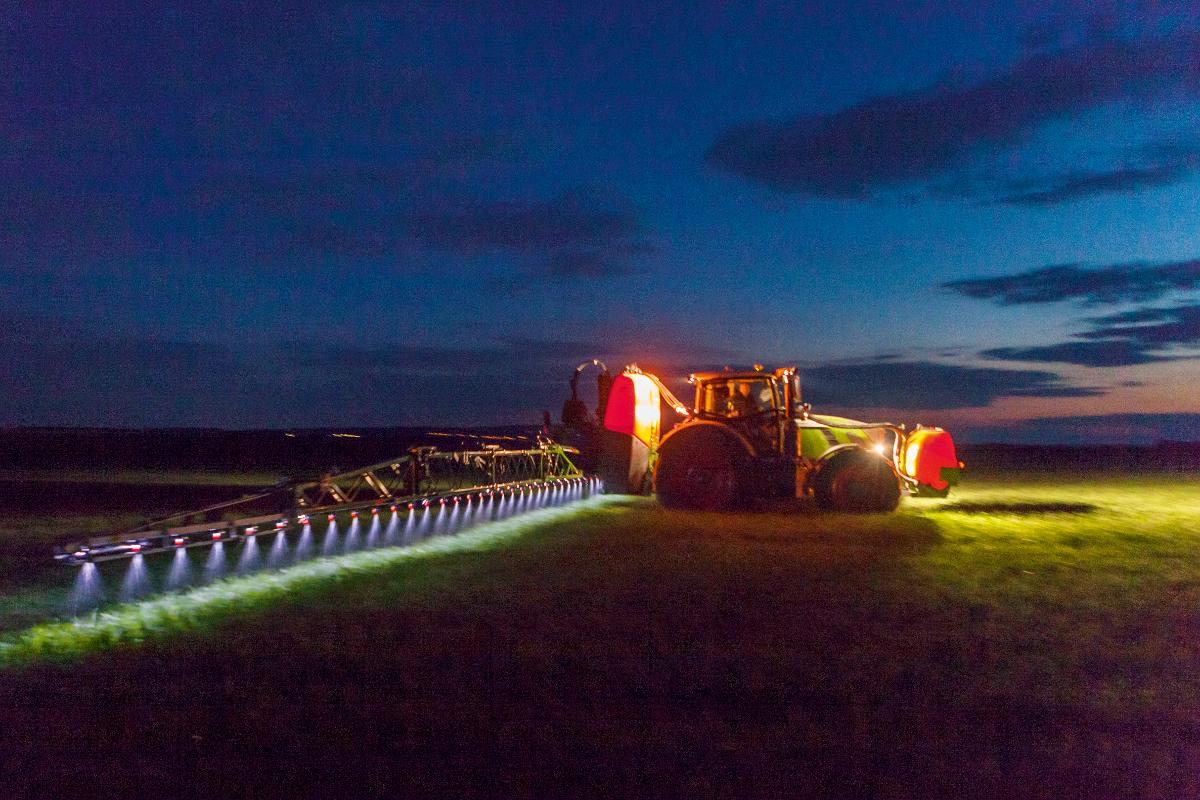

| LED individual nozzle lighting | Professional work lighting is today the basis of a flexible, output-increasing solution to operating in twilight and at night. LED individual nozzle lighting picks out each individual spray fan. An absolutely immediate assessment of their operation down to the very last nozzle on the boom can be made. |
|
| The DUS pressure recirculation system – proven more than 10,000 times | The AMAZONE DUS pressure recirculation system ensures a reliable circulation throughout the entire system. When starting the spraying operation, all the hoses including the spray lines are filled under pressure in the reverse direction with the mixed spray agent. This means the spray lines are always full and immediately ready to use over the entire working width. There is no waiting on the headland. |
|
| Every time individual part-width sections are shut off, during the turning operation and during transport, the spray liquid circulates continually thanks to the pressure recirculation system. This reliably prevents deposits, blockages or segregation in the spray lines. |
|
| During the cleaning operation, fresh water flushes the spray lines out right up to the nozzles without any spraying being necessary. During this cleaning procedure, the concentrated spray liquid is returned back to tank via the pressure recirculation system leaving the spray lines clean. |
|
| Precise switching in 50 cm part-width sections | The decisive benefit of the individual nozzle control is the possibility to operate with small part-width sections giving an even greater degree of precision in wedge shaped fields, short work and on the headland. If AmaSwitch or AmaSelect is combined with the automatic GPS-Switch Section Control, the automatic switching of individual nozzles in 50 cm part-width sections is made possible. With this system, areas of overlap are significantly reduced and are, in comparison with a conventional Section Control part-width section shut-off system, up to 85 % less. So, the combination of GPS-Switch and individual nozzle control results in, depending on field shape and size, the working width and number of part-width sections, significant savings of spray agent compared with a normal spraying system used thus far. |
|
| Less drift also at higher wind speeds | With the air-assisted injector nozzles, crop protection agents can be applied with very little drift. They are universally usable in all crops and all classifications. Because of the coarse droplet application, these nozzles can also be used in higher wind speeds. |
|
| AmaSpray+ operator terminal | The handy AmaSpray+ is specifically designed for the operation of AMAZONE sprayers and offers simple, but nevertheless, automatic control of the UF mounted sprayer. Switches integrated into the operator terminal enable the control of 5, 7 or 9 part-width sections. AmaSpray+ has a digital pressure display and digital tank level indicator. It records the quantity applied and area worked. The hydraulic functions are operated using the spool valves on the tractor. The boom tilt and pendulum lock are also displayed in the AmaSpray+. As an option, AmaSpray+ enables one-sided folding of the boom or, alternatively, control of the end nozzles. The AmaSpray+ operator terminal with serial Interface can also be used for the automatic documentation (ASD) and part area site-specific application via a GPS terminal. |
