New!

3650-2

Overview

New Comfort Cab with 30% more room and optional air conditioning. With an operating wight of 2700kg/2850kg

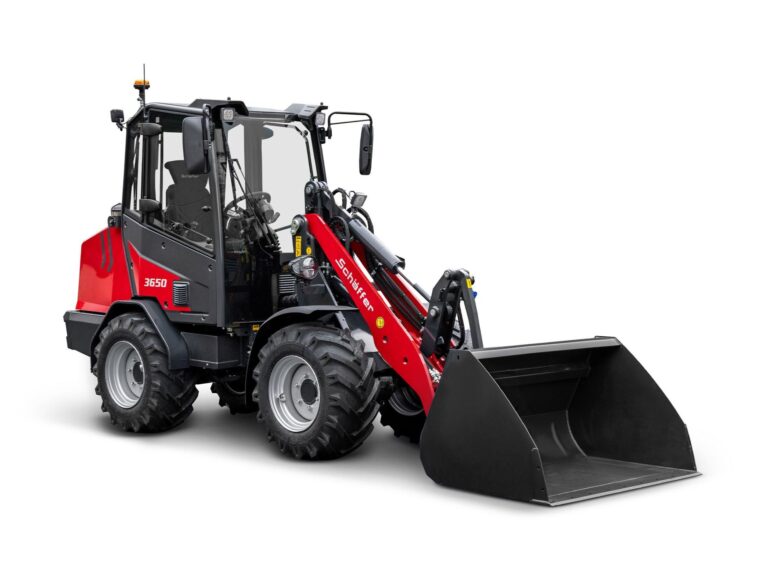

Schaffer 3650-2

Main Specifications

  • 3-cylinder diesel engine Kubota D1803-CR(-T), 37 kW (50 HP)
  • Wheelbase of 1,800mm
  • Cab hight 2,270mm
  • Inner turning radius 1,180mm
  • Lifting capacity 2,000 kg
  • Max, bucket pivot point 2,950mm / 3,200mm(with high lift option)
  • Loading height with pallet forks 2,810mm / 3,060mm(with high lift option)
  • Max, dumping height 2,140mm / 2,390mm (with high lift option)

    • Engine

    Type: 3-cylinder diesel engine Kubota D1803-CR(-T) Output: 37 kW (50 HP) Exhaust gas treatment / emission level: DOC, DPF / V
    Do
    NOT DELETE
    THIS TABLE
    IT CREATES CSS THAT IS USED
    in the ACF Repeater
    JET Engine fields
    for the engine specs - Ken
    DEF (AdBlue) Capacity

    Cab / Operations

    The new compact loader 3650-2: More comfort, a fresh look and as efficient as ever.

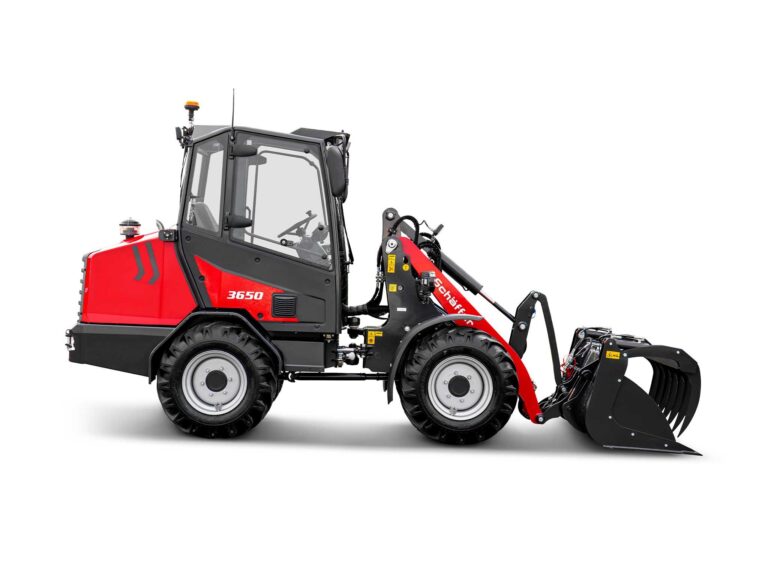

    Schaffer3650-2 Cabin
    New comfort cab with 30% more room:

    More space, more freedom of movement and a much more pleasant working atmosphere.

    Optional air conditioning and improved insulation:

    Working at an optimal temperature and with less noise ensures maximum comfort.

    Increased spring travel of the cab suspension:

    Noticeably less vibrations, offering both the driver and the machine more protection. 10% more glass, a compact bonnet and larger exterior mirrors: Perfect all-round visibility for greater safety and precise operation. Suspended pedals and wider doorway: Easier to clean and convenient access, ideal for long working days.

    Driveline

    Transmission

    SPT (Schäffer Power Transmission)

    Hydraulics

    Working hydraulics standard / options: 46 / 51 (stronger pump) / 81 l/min (MHF)

    Learn More About the 3650-2

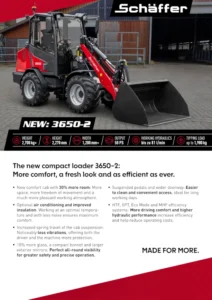

    Download
