Catros mounted compact disc harrow

Overview

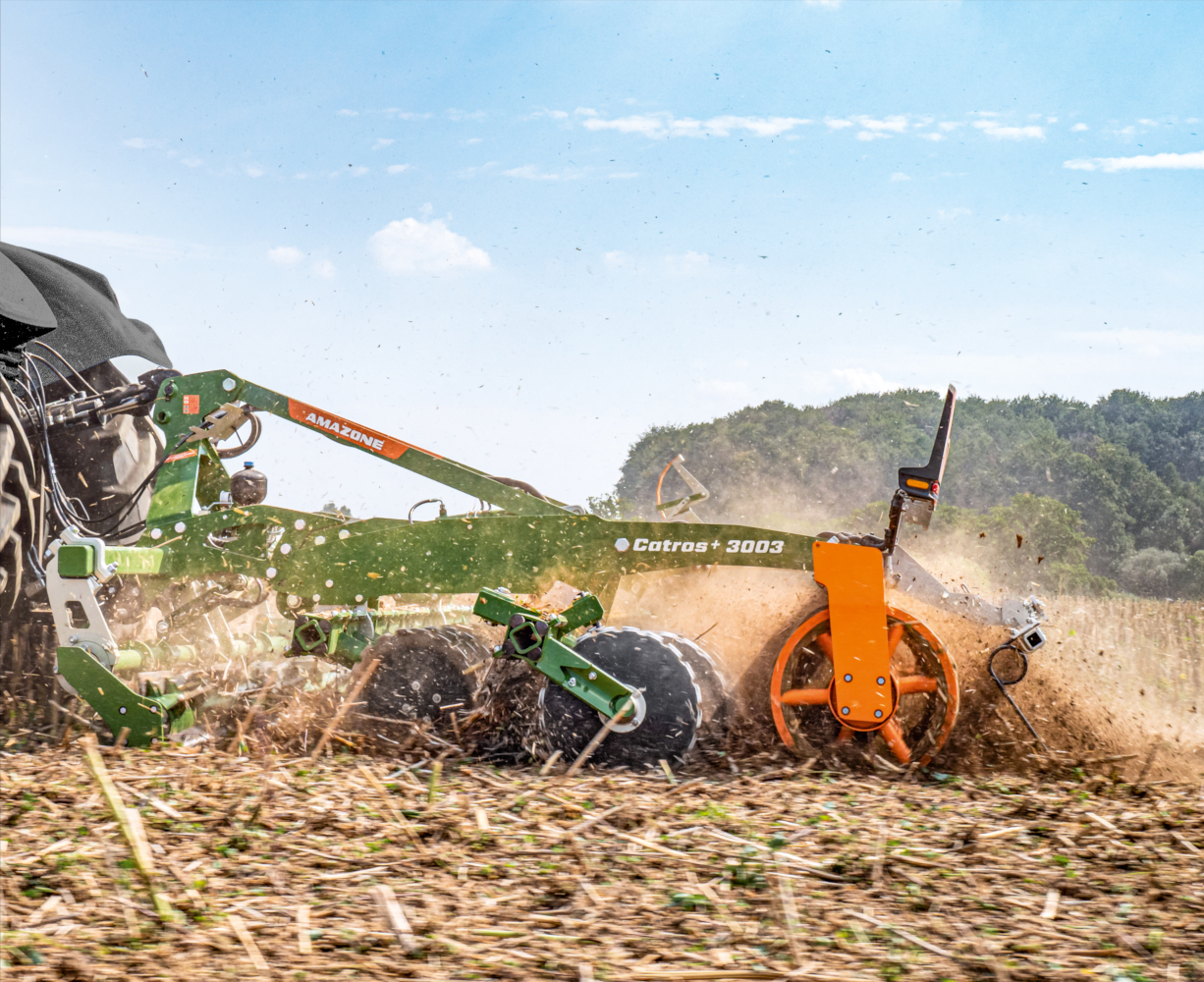

The Catros, Catros+, Catros-2 and Catros-2TS compact disc harrows are ideally suited for shallow and intensively mixing soil tillage. Thanks to its easy pulling, and working widths from 3 to 6 m, especially high forward speeds and impressive work rates are possible.

Amazone Catros mounted compact disc harrow

Main Specifications

  • Easy pulling; in 3 m working width with a tractor power requirement from just 90 HP
  • Maintenance-free disc bearings with slide seals and life-long lubrication
  • Maintenance-free stone safety protection via rubber sprung buffer blocks
  • Individual disc suspension for optimised contour following and excellent through passage
  • Disc stagger adjustment via a quick and comfortable mechanical setting
  • The GreenDrill seeder box can be specified as an option
  • Optional hydraulic depth adjustment with scale showing the working depth
  • Features

    Amazone Catros mounted compact disc harrow 2
    Catros and Catros+Catros/Catros+ 3001, 3.0 m working width
    Catros/Catros+ 3501, 3.5 m working width
    Catros/Catros+ 4001, 4.0 m working width
    Catros and Catros+-2Catros/Catros+ 4002-2, 4.0 m working width
    Catros/Catros+ 5002-2, 5.0 m working width
    Catros/Catros+ 6002-2, 6.0 m working width
    In a fixed widthIn working widths from 3 m to 4 m, the rigid, 3-point linkage mounted models with their high operational speeds are incredibly efficient.
    Catros/Catros+ 3001, 3.0 m working width
    Catros/Catros+ 3501, 3.5 m working width
    Catros/Catros+ 4001, 4.0 m working width

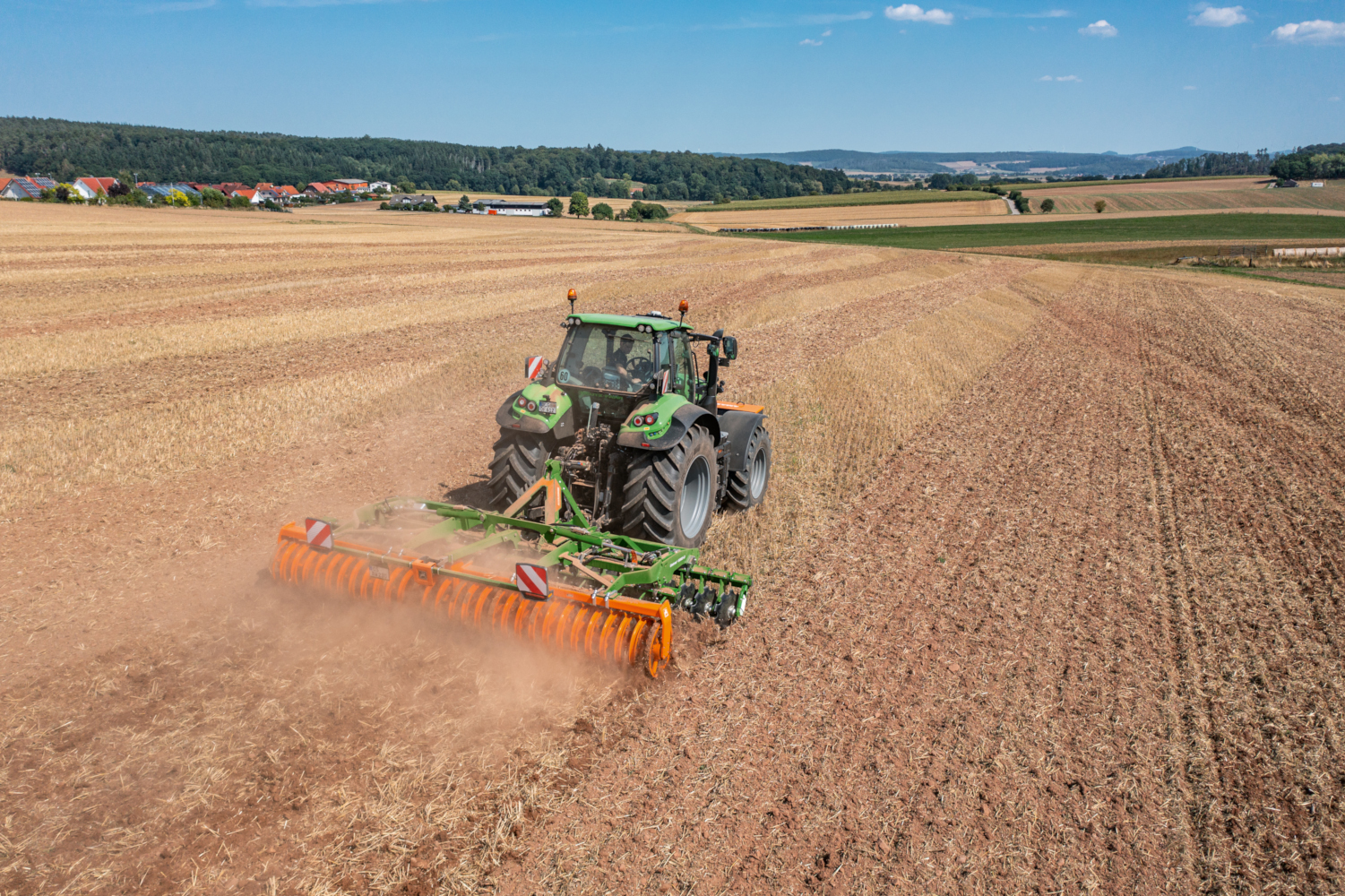

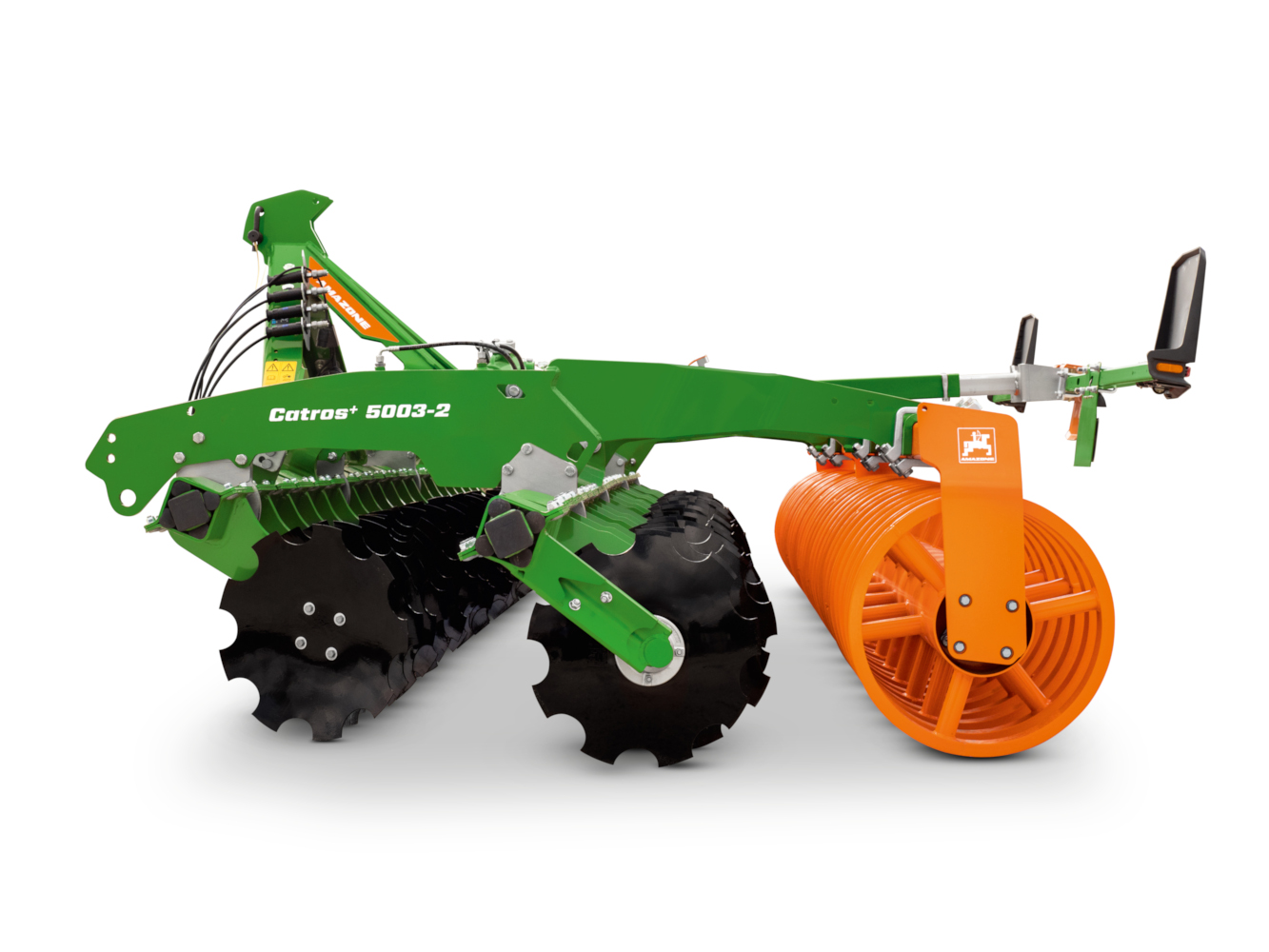

    Hydraulically-folding The hydraulically folding, 3-point linkage mounted Catros range, in working widths from 4 m to 6 m, are ideally suited where there is the highest demand for big acreages and daily outputs.
    Catros/Catros+ 4002-2, 4.0 m working width
    Catros/Catros+ 5002-2, 5.0 m working width
    Catros/Catros+ 6002-2, 6.0 m working width
    Outstandingly low fuel consumptionWith the Catros compact disc harrow, operational speeds of 12 km/h to 18 km/h are achieved problem-free, enabling outstandingly high work rates and reducing the operational time to a minimum. Important, however, for economic success, are both the fuel, and the wear and tear costs. In order to determine reliable figures for these costs AMAZONE has carried out trials in collaboration with the DLG test centre in Gross-Umstadt. In all the tests, the Catros compact disc harrows proved to be extremely fuel efficient. So when stubble cultivating at a medium working depth of about 6 cm – depending on soil type and ground topography – an approximate fuel consumption of only 4 l/ha was measured. Similarly favourable were the consumption figures during seedbed preparation.
    Optimum reconsolidationDepending on the kind of soil, the range of following rollers are designed to provide intensive crumbling and reconsolidation. Changing rollers just requires a pair of brackets to be loosened. The large distance between discs and following roller ensures that the soil settles again and can be perfectly reconsolidated by the following roller.
    Following rollers and harrow combinationsFor seedbed preparation for maize or sugar beet, the AMAZONE compact disc harrows can be equipped with a variety of rollers in addition to a following harrow. The following harrow creates a very fine-crumbled soil surface structure and thus the perfect germination conditions for the following crops. An additional advantage when using the harrow is the optimised straw distribution.

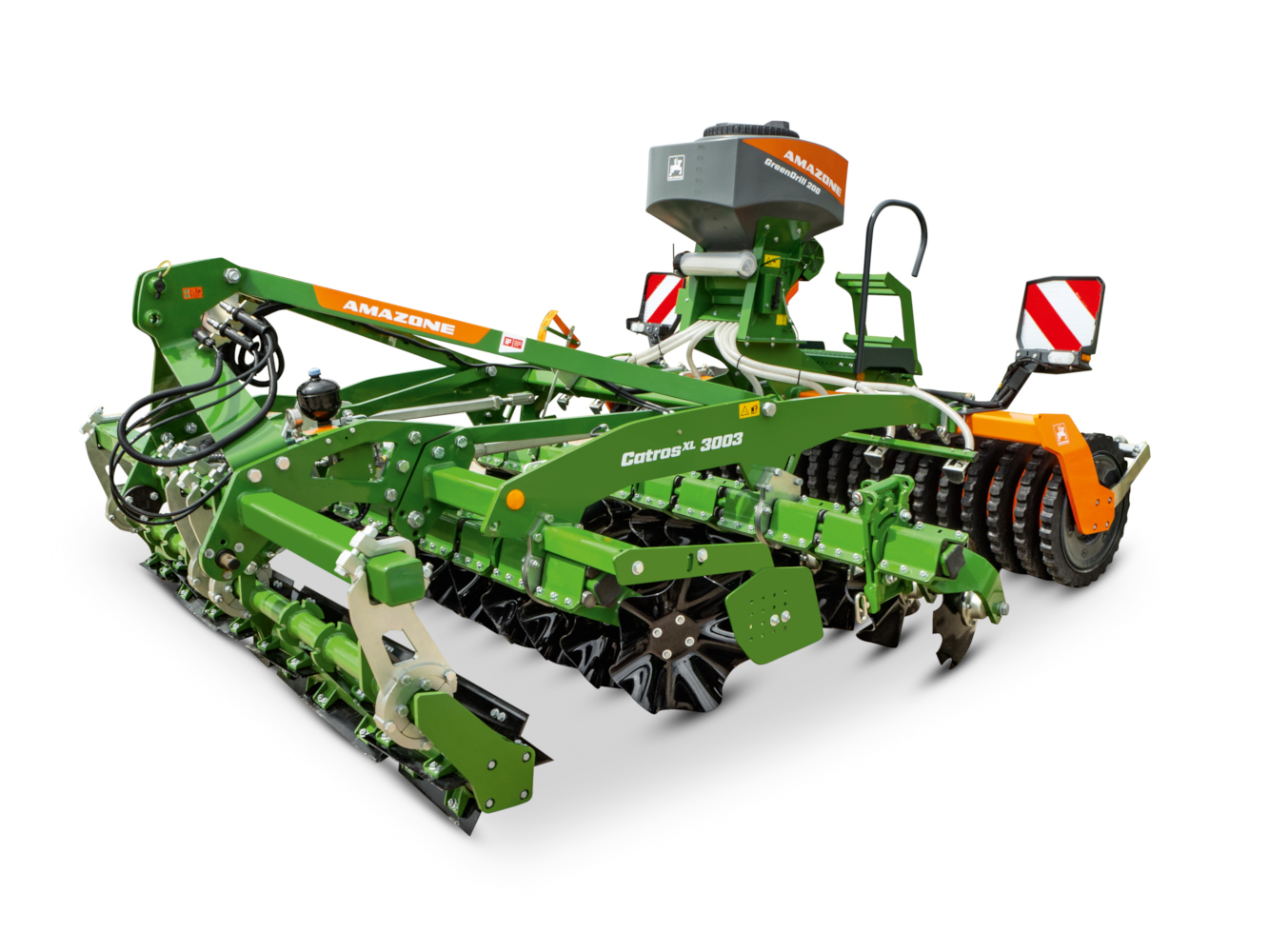

    GreenDrill – mounted seeder box for fine seeds and catch cropsAMAZONE offers the GreenDrill catch crop seeder box so that catch crops can be applied directly or together with the soil tillage operation. It can be combined with the Catros, CatrosXL and Certos compact disc harrows as well as the Cenius mulch cultivator, the KG rotary cultivator or the KE rotary harrow. The seed is distributed evenly by the spreader plates. The GreenDrill seed hopper holds 200 l or alternatively 500 l and is easily accessed via the loading steps provided. In the metering system below the seed hopper, a seed shaft is fitted with normal or fine seed wheels depending on the seed type and desired application rate. The drive to the seed shaft is electric and that of the blower fan either electric or hydraulic.
