5080D Keyline

Overview

5D KEYLINE. SIMPLY THE RIGHT CHOICE.

All conceivable work on the farm, light transportation duties and field work in manageable areas – the new models in the 5D Keyline series are simply ideal for small agricultural and part-time farming operations. Simply impressive technology: The displacement-optimised three-cylinder FARMotion engines deliver top performance, fuel efficiency and optimum emission values with power outputs of 75 HP (55.4 kW). Simply efficient 15+15 mechanical transmission: The maximum speed of 40 km/h can already be reached at 1870 rpm on all models. All 5D Keyline models are equipped with a four-wheel drive and four-wheel brakes. The four-wheel drive system and 100% differential lock can be electrohydraulically operated. Simply versatile: The 50 l/min hydraulic pump for two mechanically controlled valves at the rear and the rear power lift with a maximum lifting force of 3500 kg. Simply comfortable cab: With 360° all-round visibility, wide doors, high visibility roof and highly ergonomic operation. The models in the new 5D Keyline series are the right choice for anyone wishing to simply work economically.

Deutz-Fahr 5080D Keyline

Main Specifications

  • 75hp
  • SDF FARMotion
  • 3200kg
  • 2100mm wheel base
  • Engine

    FARMOTION ENGINES. SIMPLY HIGHLY EFFICIENT.

    State-of-the-art, displacement-optimised three-cylinder FARMotion engines with power outputs of 75 HP (55.4 kW) can be found under the hood of the new 5D Keyline series model. These engines have been specially developed for use in the agricultural industry. Electronic 2000 bar common-rail fuel injection, charge air cooling and DOC exhaust gas filtration guarantee high power delivery and a high torque with minimal fuel consumption and low emission values. The newly developed compact radiator with viscous-drive fans and PowerCore air cleaner promotes engine efficiency. The cooling system is also easily accessible, which significantly simplifies maintenance and cleaning work.
    Deutz-Fahr 5080D Keyline Engine
    EngineSDF FARMotion
    Rated / Max. Horsepower75hp
    Cylinder Displacement2887 cm3
    Max Torque342Nm
    Fuel Capacity90l
    Do
    NOT DELETE
    THIS TABLE
    IT CREATES CSS THAT IS USED
    in the ACF Repeater
    JET Engine fields
    for the engine specs - Ken
    DEF (AdBlue) Capacity

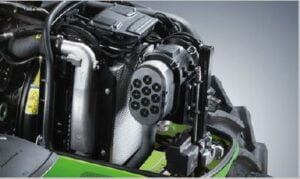

    Compact radiator with Visco fan and PowerCore air filter for maximum engine efficiency.

    Mechanical transmission with up to 30 + 15 gears, 40 km/h at 1,870 rpm.

    Cab / Operations

    SIMPLY CONVENIENT.
    Deutz-Fahr 5080D Keyline Cab

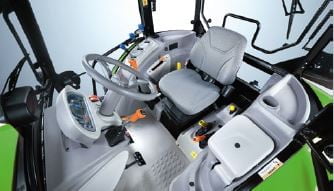

    Anyone climbing into the 5D Keyline series will immediately get the sense that it is a great place to work. Wide doors, a bright and welcoming atmosphere, plus 360° all-round visibility help farmers work efficiently. As is standard with DEUTZ-FAHR, all controls are logically arranged according to the frequency with which they are used, placed within easy reach and colour-coded. The instrument cluster in the adjustable steering column provides the driver with continuous information regarding all operating statuses. Analogue and digital. Three roof options are available. A standard glass roof allows unobstructed upward visibility. No matter what applications you need to cover, the comfortable cab of the new 5D Keyline series motivates all drivers to deliver top performance.

    5D KEYLINE SERIES. SIMPLY WORK MORE ECONOMICALLY.

    All imaginable types of farmyard work, light transport applications and field work in moderately sized areas – the new 5D Keyline Series models are simply ideal for smaller and part-time farms. Simply impressive technology: the three-cylinder FARMotion engines with optimised displacement deliver 65 h.p. (48 kW) to 97 h.p. (71 kW) with top performance, fuel efficiency and the best emissions values. Electronic common-rail injection at 2,000 bar, exhaust recirculation, intercooling, DOC exhaust after-treatment, compact radiator with Visco fan and PowerCore air filter – this really is state-of-the-art engine technology.

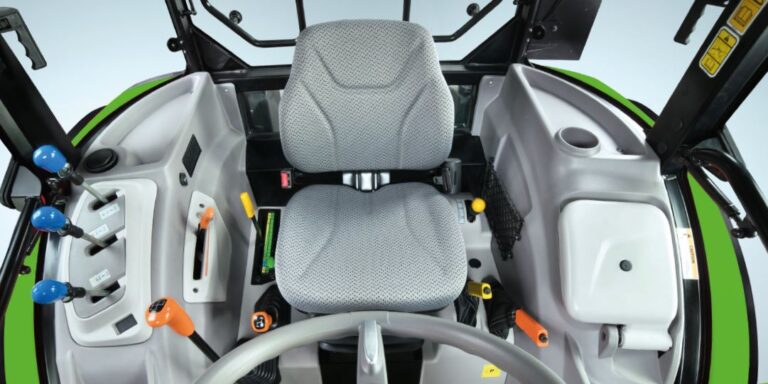

    Cabin comfort. 360-degree all-round visibility, highly ergonomic operation and choice of two roof options.

    Simply comfortable cabin: with 360-degree all-round visibility, wide doors and highly ergonomic operation. The new 5D Keyline Series models are the right choice for anybody wanting to work simply economically.

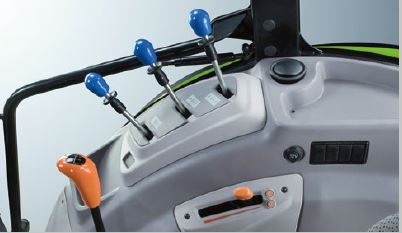

    Transmission controls within easy reach.

    There are two mechanical five-speed shuttle transmissions to choose from: 15 + 15 or 30 + 15 gears. Simply efficient: all of these vehicles reach a top speed of 40 km/h at just 1,870 rpm. All 5D Keyline models feature a four-wheel drive system and four-wheel brakes. The four-wheel drive and 100% differential lock have electro-hydraulic controls. Simply versatile: 50 l/min hydraulic pump for up to three mechanically controlled valves in the rear, rear power lift with 3,500 kg lifting capacity and PTO with up to three speeds.

    Driveline

    TRANSMISSION. SIMPLY PRECISE GEAR SHIFTS.
    Deutz-Fahr 5080D Keyline Driveline
    All new 5D Keyline models are equipped with a mechanical five-speed shuttle transmission. A 15+15 gear transmission with creeper for speeds from 287 m/h to 40 km/h is available as standard equipment. The final speed of 40 km/h can already be reached in ECO mode at 1870 rpm. This enables precise and efficient driving in all applications.

    Transmission

  • Standard Synchronised mechanical shuttle transmission or 5-speed transmission 15 + 15 with creeper gear (40 km/h ECO)
  • Optional 5-speed transmission 30 + 15 with splitter and creeper gear (40 km/h ECO)
  • Electrohydraulic engagement for 4WD and differential lock
  • Hydraulic trailer brake
  • PTO SHAFT. SIMPLY VERSATILE.

    The new 5D Keyline models are genuine all-round tractors. The PTO shaft is activated manually using a lever. This ensures smooth, jolt-free start-up. To meet international safety requirements, all 5D Keyline models feature a STANDSTILL PTO shaft switch. If the driver leaves the tractor with the PTO shaft running, they must press a button to confirm that the PTO shaft will continue to operate. If they do not provide this confirmation, the engine will switch off after seven seconds.

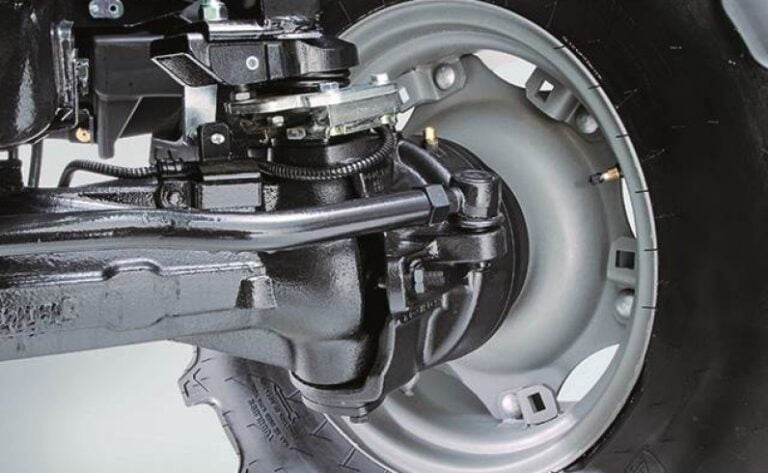

    AXLES AND BRAKES. SIMPLY SAFE IN ALL SITUATIONS.

    All new 5D Keyline series models come with all-wheel drive and wet disc brakes on all four wheels. A selector valve ensures that the braking force is distributed across the individual wheels. When both brake pedals are depressed, all four wheels are braked. When the left-hand pedal is depressed, the rear-left wheel is braked. When the right-hand pedal is depressed, the rear-right wheel is braked. This provides maximum safety in all situations. A hydraulic trailer brake is available on request. The front axle was developed by DEUTZ-FAHR specially for this horsepower class. The four-wheel drive system and 100% differential lock can be electrohydraulically operated at the touch of a button. The 55° steering angle guarantees maximum manoeuvrability.

    Parking Brake and PTO levers within easy reach

    Hydraulics

    HYDRAULICS. SIMPLY POWERFUL AND PRECISE.
    Deutz-Fahr5080D Keyline Hydraulics
    The hydraulic equipment in particular gives a good indication of how well a tractor can fit in with your enterprise. With the new 5D Keyline models, you have complete control over all relevant equipment. The 50 l/min OpenCenter pump powers two additional mechanical control valves at the rear. The DEUTZ-FAHR rear power lift with mechanical lifting gear adjustment (MHR) is known for its precise and efficient control system and can lift 3500 kg as standard. External operation from the rear mudguard also possible as an option.

    Learn More About the 5080D Keyline
