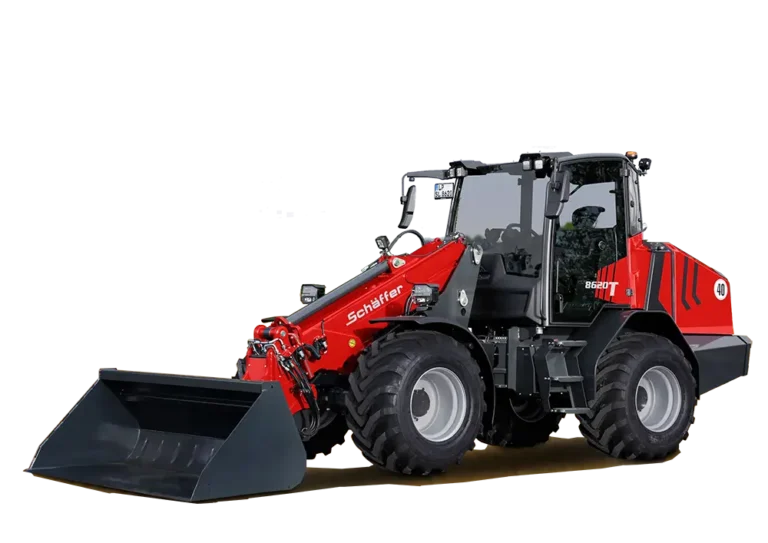

8620 T-3

New!

Overview

The 8620 T-3 represent the start of a new era of telescopic wheel loaders. The machines define the future of this powerful loader class and offer an unparalleled level of performance, ergonomics and efficiency. Sounds good? That’s because it is! Our brand new comfort cabin Plus offers significantly enhanced driving comfort and an extended range of functions. A wealth of new assistance systems improves work efficiency. At the same time, safety is boosted through monitored loading processes and an optimised all-round view. With over 30 years of experience in the design and engineering of telescopic wheel loaders, we have combined our expertise with your ideas to create a new generation. The result: two new telescopic wheel loaders that make your farm work more comfortable
and more efficient. We know your telescopic wheel loader is often the machine that does the most work on your farm. This is due not least to its versatile application possibilities.And this is the reason why your new telescopic wheel loader deserves only the best in terms of safety,
efficiency, ergonomics and comfort. Our 8620 T-3 model set new standards in all these areas and are your reliable partners on the road to economic success

Main Specifications

4-cylinder diesel engine Deutz TCD 3.6, 75/95 kW (102/129 HP) Stage V Compliance

Wheelbase of 2535 mm

Cab height 2770 mm

Inner turning radius 2310 mm

Lifting capacity 4200 Kg

Max, bucket pivot point 5200 mm

Loading height with pallet forks 5960 mm

Max, dumping height 4250 mm

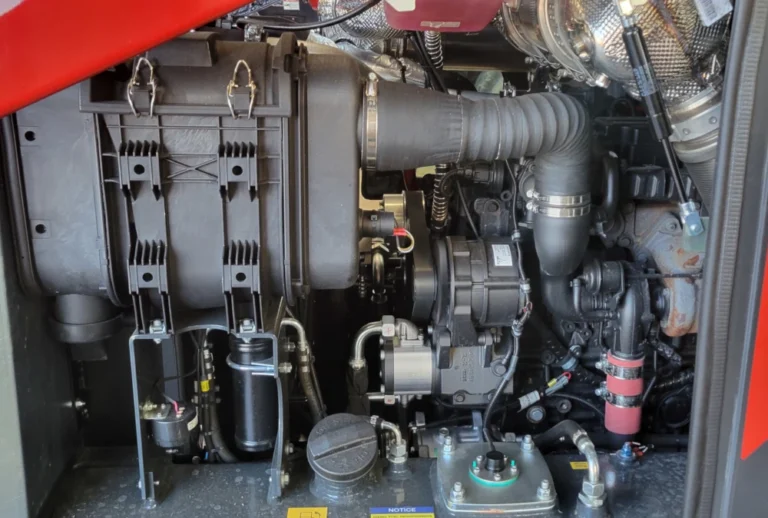

Engine

4-cylinder diesel engine Deutz TCD 3.6, 75 kW (102 HP) / 95 kW (129 HP) DOC, DPF and SCR for compliance with Stage V emissions standards

Do
NOT DELETE
THIS TABLE
IT CREATES CSS THAT IS USED
in the ACF Repeater
JET Engine fields
for the engine specs - Ken
DEF (AdBlue) Capacity

Cab / Operations

Enter the large and inviting comfort cabin Plus, which is much more spacious than its predecessors thanks to a wider design. It is equipped with a 10-inch touchscreen, which makes operation more user-friendly than ever. Control your telescopic wheel loader effortlessly and intuitively. The colour-structured switch concept facilitates navigation. An additional soft-touch control panel featuring large buttons ensures quick access to the most frequently used functions. The steering column is easy to adjust, and all the pedals have an ergonomic and suspended design – a distinct advantage for both controlling and cleaning.

Driveline

Transmission

Hydraulics

Selectable user profiles of the working hydraulics (fast, medium, slow) Working hydraulics standard / options: 106 / 125 (stronger pump) / 172 l/min (Load Sensing)
